Dòng bơm Alfa Laval LKH được ứng dụng rộng rãi trong các ngành vi sinh, thực phẩm, dược phẩm và hóa mỹ phẩm...
Đường đặc tính hiệu suất của dòng bơm LKH như mô tả bên dưới:

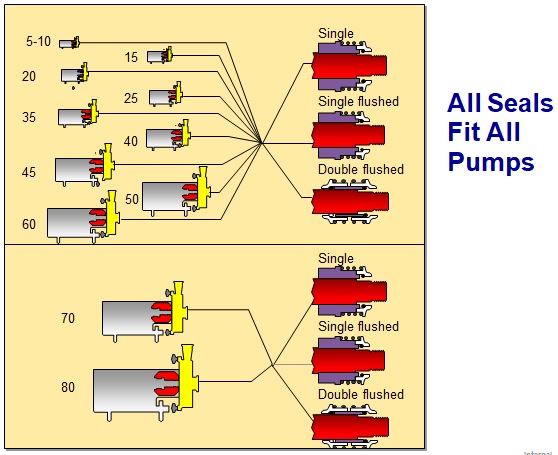

The LKH Shaft Seal
Identical seal for all models
LKH 5 - 60 Available in 3 versions
- Single, external or internal
- Flushed, external or internal
- Double mechanical, external
Easy conversion from single to flushed or double mechanical shaft seal
Bơm ly tâm đa tầng cánh
LKH Multistage - 112 - 113 - 114
•Flow up to 25 m3/h
•Pressure up to 11.5 bar
•Internal Shaft Seal - Single - Flushed
•ABB Motor 2.2 - 18.5 kW
•Option for high inlet pressure
LKH Multistage - 122/P - 123/P - 124/P
•Flow up to 70 m3/h
•Pressure up to 19 bar
•Internal Shaft Seal - Single - Flushed
•ABB Motor 2.2 - 75 kW
•Option for high inlet pressure
LKHP (high system press) - 10 - 15 - 20 - 25 - 35 - 40 - 50 - 60
• Flow up to 240 m3/h
• Pressure up to 8 bar
• IEC Norm Motor 1.5 - 30 KW (with special bearings)
• Inlet pressure up to 40 bar
• Internal Shaft Seal - Single - Flushed
LKHSP Feature & Benefit
The self-priming pump is less noisy. Lower energy consumption for the same pump size Same pump type /shaft seal for the whole plant Flexible - adjustment of Q/H for the application
Note: Max static head after pump = 8 meters
